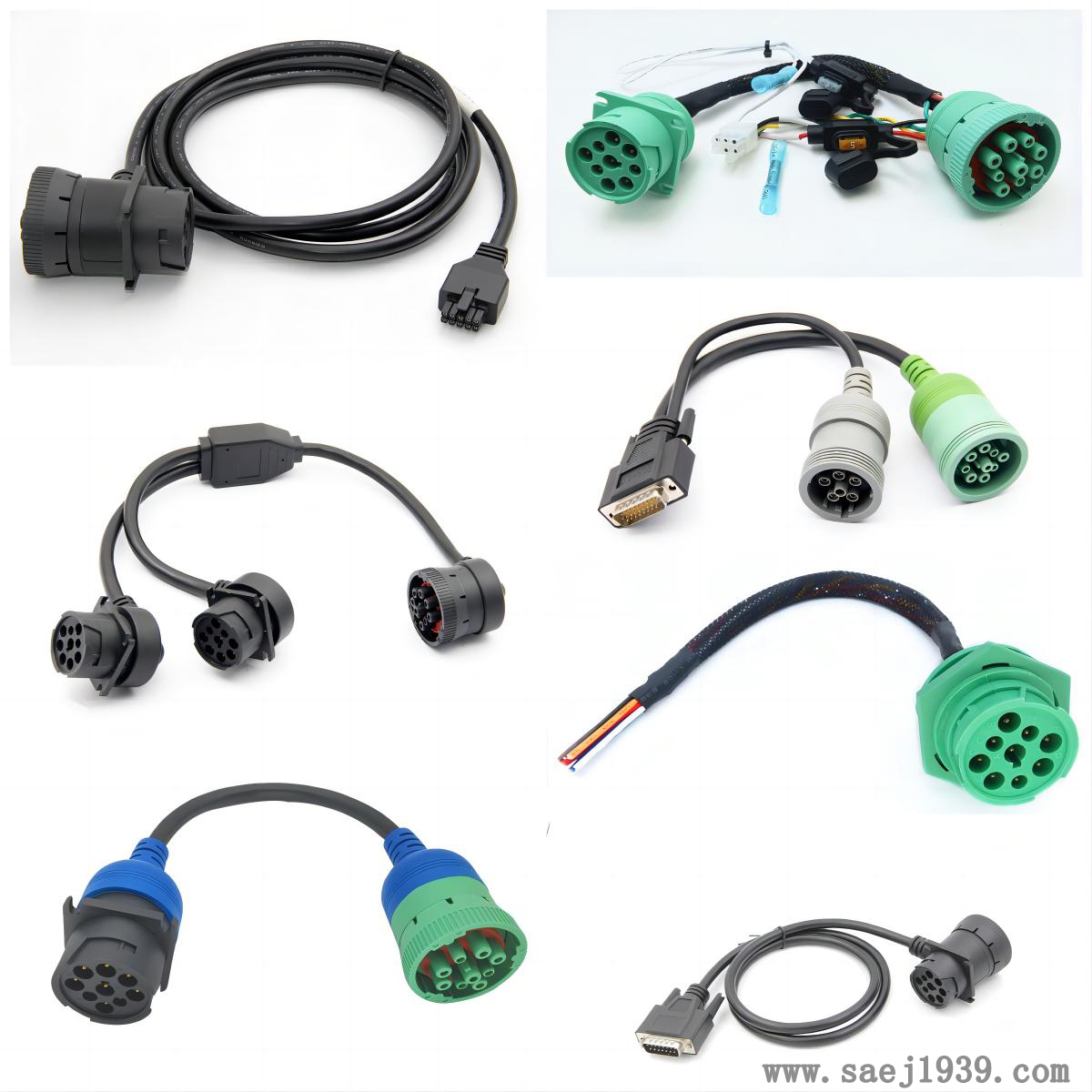

How to conduct testing after installing J1939 splitter Y cable

How to conduct testing after installing J1939 splitter Y cable

After installing the J1939 splitter Y cable, the following aspects can be tested:

Physical connection check

Check if the connection between the splitter and cable is secure, and if there is any looseness, deformation, or damage at the interface. Ensure that each branch of the Y cable is tightly connected to the corresponding equipment without any poor contact.

Check whether the cable laying meets the requirements, whether there are any excessively bent, stretched or squeezed parts, whether the cable fixation is reliable, and avoid cable displacement or damage caused by ship vibration and other reasons.

Confirm whether the installation position of the splitter is correct, whether there is sufficient space around for heat dissipation and maintenance, whether the fixing of the splitter is stable, and whether it can prevent shaking or falling during the operation of the ship.

Electrical performance testing

Use a multimeter to measure the resistance values of the input and output ports of the splitter and check if they are within the normal range. The resistance values of different types of splitters may vary, and you can refer to the technical parameters in the product manual for judgment. If the resistance value is abnormal, it may indicate a fault or poor connection in the internal circuit of the splitter.

Check the conductivity of the cable, use the on/off range of the multimeter to test each core wire of the Y cable separately, ensuring that the line from the splitter to the connected equipment is unobstructed, without any open or short circuits. If a certain core wire is found to be disconnected, it is necessary to check whether the connectors at both ends of the cable are installed correctly or whether there is any damage in the middle of the cable.

Check if the grounding of the splitter and cable is good. The use of a grounding resistance tester to measure grounding resistance should comply with the grounding requirements of the ship's electrical system. Good grounding is crucial for ensuring the stability and safety of the system. Poor grounding may lead to increased electromagnetic interference and even cause safety accidents.

Communication function test

Start devices connected to the J1939 network, such as engine control systems, monitoring systems, etc., and observe whether the devices can initialize normally and establish a connection with the network. If the device fails to start properly or displays a communication failure, it may be due to installation issues with the splitter or cable causing network communication interruption.

Send and receive test data through the device to check the accuracy and completeness of data transmission. For example, specific instructions or data can be sent on one device and then checked for correct reception on other devices connected to the same network. Professional communication testing tools such as J1939 protocol analyzer can also be used to monitor data traffic and signal quality on the network, and check for issues such as data loss, errors, or delays.

Simulate various working conditions during the operation of the ship, such as changes in engine load, equipment start stop, etc., and observe whether the communication of J1939 network is stable. Under different operating conditions, the data flow and communication frequency in the network may vary. By simulating actual operating conditions, the communication performance of splitter Y cable can be more comprehensively tested under various conditions.

System compatibility testing

Check if the newly installed splitter Y cable is compatible with the existing J1939 equipment and systems on board the vessel. Ensure that the protocol version, electrical characteristics, etc. of the splitter are compatible with other devices and will not cause communication failures or system instability due to compatibility issues.

Try adding or removing some devices in the network and observe the response of the splitter Y cable and the entire system. The system should be able to recognize the addition or removal of devices normally and maintain communication stability. If there are issues such as device recognition failure or network malfunction, further investigation is needed to determine the compatibility between the splitter and the device.
