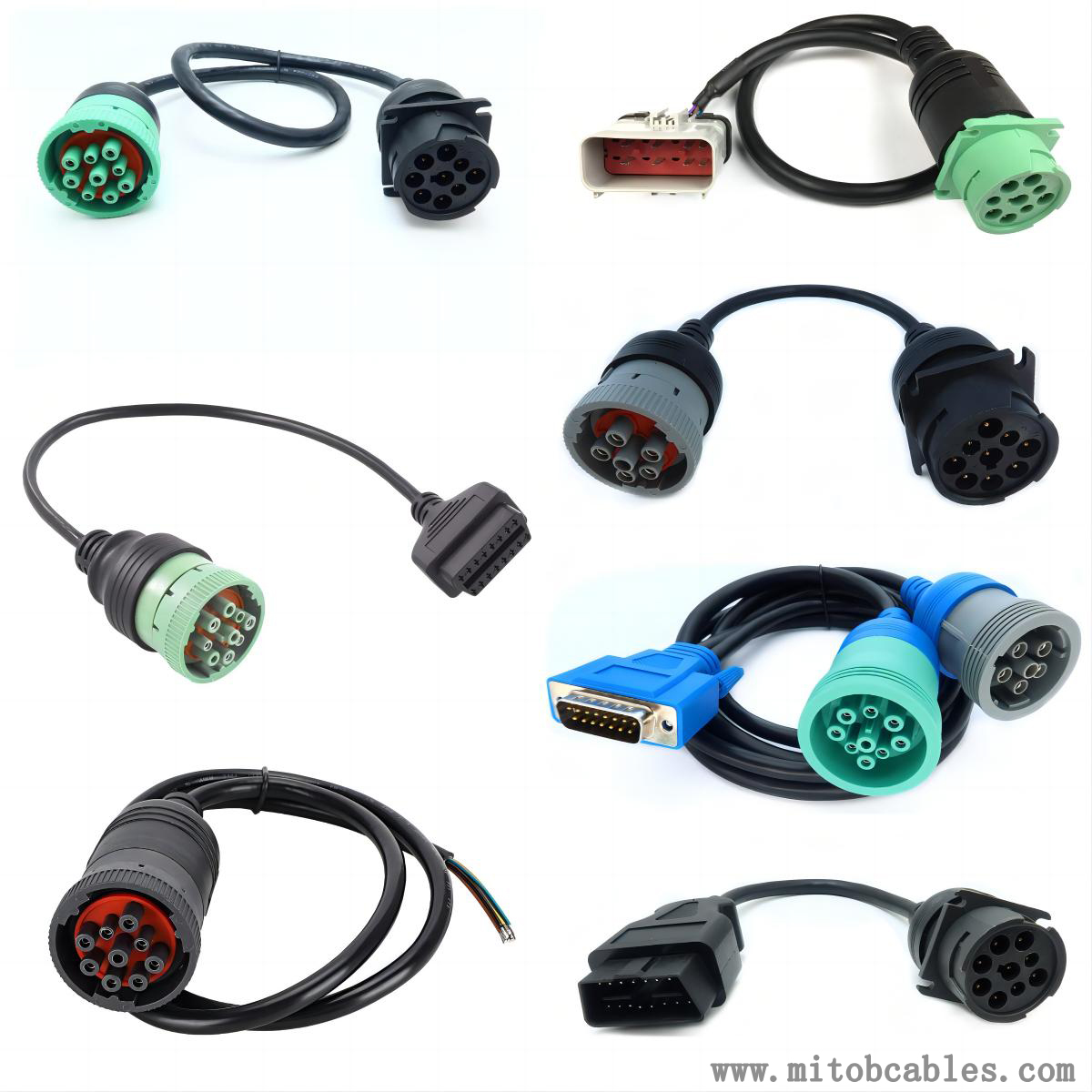

Instructions for using J1939 to OBD2 cable

Instructions for using J1939 to OBD2 cable

The usage method of J1939 to OBD2 cable is as follows:

Confirm vehicle and equipment compatibility: Firstly, ensure that the vehicle adopts J1939 protocol and that the diagnostic equipment, data collectors, etc. that need to be connected support OBD2 interface. Generally speaking, commercial vehicles such as heavy-duty trucks and large buses often use the J1939 protocol, while common universal automotive diagnostic instruments usually follow the OBD2 standard.

Preparation work: Before using the cable, the vehicle engine and related power supply should be turned off, and the diagnostic equipment or other receiving devices should be turned on to ensure that they are in normal working condition and able to receive OBD2 signals.

Connecting cable: Insert one end of the J1939 interface of the J1939 to OBD2 cable into the vehicle's J1939 diagnostic interface.

Turn on the vehicle power: Turn on the ignition switch of the vehicle to power on the electronic control unit (ECU) and start working. At this point, the vehicle's ECU will send various data signals through the J1939 bus, which will be received by cables and converted into OBD2 format.

Operating diagnostic equipment: Select the corresponding function menu on the diagnostic equipment or data collector, such as reading fault codes, viewing real-time data, etc. The device will obtain relevant information from the vehicle ECU through cables and display it on the screen. Maintenance personnel or operators can perform fault diagnosis, data analysis, and other tasks based on this information.

After use operation: After use, turn off the vehicle power first, and then turn off the diagnostic equipment or data collector. Then unplug the J1939 to OBD2 cable from the vehicle and equipment respectively, and keep the cable properly to avoid damage or contamination.

During use, it is necessary to strictly follow the instructions of the cables and related equipment to ensure safe and accurate acquisition of vehicle data. At the same time, it is necessary to regularly check whether the cables are damaged. If problems such as damaged cable sheaths or loose interfaces are found, they should be replaced or repaired in a timely manner to avoid affecting data transmission and the normal use of equipment.
